aci-sim

A stateful, dependency-free REST simulator of a 2-site Cisco ACI/NDO fabric — run Ansible cisco.aci playbooks, ACI SDKs, or an AI agent against it like real gear, with no hardware required.

A faithful REST simulator of a 2-site Cisco ACI fabric — a per-site APIC plus a Nexus Dashboard Orchestrator (ND/NDO) plane — with no physical or virtual ACI hardware required.

The sim answers the same URLs, response envelopes, and query semantics as a real APIC / NDO, so anything that speaks the ACI/NDO REST API — Ansible's cisco.aci collection, custom ACI clients/SDKs, CI pipelines, or an AI coding agent poking around a "fabric" — runs against it unmodified. The entire fabric — nodes, tenants, VRFs/BDs/EPGs, contracts, L3Outs, faults, endpoints, and the whole NDO schema tree — is generated deterministically from a single topology.yaml.

What it simulates (and what it doesn't): aci-sim simulates the management plane — the REST API and the operational state a converged fabric would report. It does not run routing protocols: OSPF/BGP/LLDP state (operSt=full, established, adjacencies, /31 link addressing) is materialized from configuration, not computed — push the config and the matching operational MOs appear, exactly as your automation would read them off a healthy fabric. That's why the cisco.aci/cisco.mso collections and API clients work unmodified, and why the whole thing runs on a Raspberry Pi 4 — and also why it can't test convergence, failover timing, or actual traffic forwarding.

A 2-site, 15-node fabric rendered by aci-sim graph — spines (blue), leaves/border-leaves (green), controllers (amber), and the inter-site ISN cloud (slate) — solid orange ISN uplinks, plus a physical-links table with the /31 point-to-point ISN addressing. See §5's aci-sim graph for how to generate your own.

Platforms — Linux (x86-64 & ARM: Raspberry Pi OS, Debian, Ubuntu — a Raspberry Pi 4 is enough) and macOS (Apple Silicon & Intel). Python 3.11+. The full test suite runs green on both. The default port mode runs anywhere Python does; sandbox mode (real management IPs on :443) needs root and is Linux/macOS only. Windows is untested.

60-second quickstart

pip install git+https://github.com/dtzp555-max/aci-sim.git
aci-sim run &
aci-sim query fabricNode        # shows the 7-node LAB1 fabric

That's it — no cert generation, no manual aaaLogin/cookie handling, no clone required. See §4 for the full install/run options (including the from-source/clone path needed for scripts/, examples/, and Ansible) and §5 for the full aci-sim CLI reference.

---

1. Purpose

What it simulates: a 2-site Cisco ACI fabric (spines, leaves, border leaves in vPC pairs, an inter-site ISN/EVPN mesh), one APIC REST API per site, and one NDO/MSO REST plane tying the two sites together. All three planes are derived from the same topology definition, so tenant/VRF/BD names and IDs are guaranteed consistent between a site's APIC and NDO's view of it — matching how a real multi-site deployment behaves.

The simulator implements a 99-class object catalog (docs/CONTRACT.md §6) spanning fabric/topology, faults, interfaces, underlay neighbors, BGP-EVPN overlay, COOP/EPM, routing tables, tenant policy, contracts, L3Out, access policy, and capacity/backup classes — the subset of the real ACI object model that REST clients and Ansible's cisco.aci modules actually read and write.

Why it exists:

• Test Ansible cisco.aci playbooks (tenant/VRF/BD/AP/EPG create, idempotency, teardown) without booking lab time on real or virtual ACI hardware. See examples/ansible/.
• Develop and exercise ACI REST clients/SDKs against faithful envelope shapes, filter grammar, pagination, and error codes — including edge cases (malformed filters, expired sessions, atomic write validation) that are tedious to provoke on a real controller.
• CI gates — spin the sim up in a GitHub Actions job, run integration tests against real HTTP, tear it down; no external dependency, no credentials to manage, fully deterministic. See examples/ci/ for a copy-pasteable GitHub Actions gate + assert_mit.py, a tiny MIT-end-state assertion helper that fails the build when a change stops producing the objects it should.
• AI-agent sandboxes — a safe, disposable target for agents that need to "drive" an ACI/NDO-shaped API (query, write, verify) without touching production infrastructure. The /_sim control API (snapshot / restore / reset) makes a clean act-observe-reset eval harness; seeded faults let you test an agent's diagnosis path.
• Training / demos — a full 2-site fabric with faults, endpoints, and contracts to explore, with no hardware cost.

It was originally built to exercise a companion project, autoACI, end-to-end without a lab; that contract is preserved (docs/CONTRACT.md), but the simulator's REST surface is generic ACI/NDO — nothing in it is autoACI- specific.

More applications

The same "stateful management-plane, real REST, resettable" core supports a few more scenarios — with an honest note on what each needs today:

Use case	Status
SDK / provider testing (cobra, acitoolkit, terraform-provider-aci, custom Go/Python clients)	Ready — faithful envelope/DN/filter semantics
Change pre-flight — model a proposed change (new tenant, VLAN migration) against a sim seeded to mirror production, catch errors before touching real gear	Ready — this is what the production-var validation runs exercise
REST-contract / regression testing — pin the APIC/NDO REST behaviour your tooling depends on to a git-versioned target	Ready
Multi-tool interop — verify Ansible + Terraform + a Python script converge on the same MIT	Ready
Monitoring/observability integration — test a fault→alert pipeline or exporter against seeded faults/health	Ready — polling AND websocket query subscriptions (?subscription=yes + /socket<token> push-on-change) both work, see §10a
Client scale/perf testing — hammer pagination / large-MIT / concurrent queries	Needs a large-topology seed (extension)

Out of scope (management-plane simulator, by design): the data plane (packet forwarding, real VXLAN), real APIC software internals (upgrades, cluster quorum), and live event-driven telemetry — operational objects (faults, health, endpoints, routes) are synthesised from the topology at build time, not generated from real events.

---

2. Architecture

Module map

topology.yaml
     │  load_topology()               topology/loader.py + schema.py (Pydantic v2)
     ▼
  Topology
     │
     ├─ build_all(topo) ──► {site_name: MITStore}      build/orchestrator.py
     │     builders: fabric, cabling, underlay, overlay, interfaces,
     │               tenants, access, l3out, endpoints, routing,
     │               zoning, health_faults
     │
     └─ build_ndo_model(topo) ──► NdoState             ndo/model.py
           (names derived from the SAME topo → APIC/NDO consistency)

  make_apic_app(ApicSiteState) ──► FastAPI  (×2, one per site)   rest_aci/app.py
        ├─ query engine  (class / mo / node-scoped)              query/engine.py
        ├─ write handler (upsert + fabricNodeIdentP reaction)    rest_aci/writes.py
        └─ /_sim control router                                  control/admin.py

  make_ndo_app(NdoState) ──► FastAPI                             ndo/app.py

  runtime/supervisor.py  →  three uvicorn servers over TLS (asyncio.gather)

• mit/ — the object store. MO (dn-keyed managed object with attrs/children) + MITStore (dn→MO map, parent→children index, deterministic insertion order). No dependencies — the foundation every other layer builds on.
• query/ — the ACI query engine: filters.py parses eq/wcard/and/or/gt/lt/ge/le/bw(...) filter expressions into predicates; engine.py implements the three query shapes (class, MO/DN, node-scoped) plus both subtree modes (legacy query-target=subtree flat, modern rsp-subtree=children|full nested) and pagination.
• topology/ — Pydantic v2 schema + loader for topology.yaml. Fails loudly (all errors at once) on bad cross-references (BD→VRF, EPG→BD, L3Out→VRF, CSW peering mismatches, IP pools outside builder-derived ranges).
• build/ — one pure build(topo, site, store) function per concern (fabric, cabling, underlay, overlay/ISN, interfaces, tenants, access, l3out, endpoints, routing, zoning, health_faults); each only adds MOs. orchestrator.py runs them in dependency order and returns a populated MITStore per site.
• rest_aci/ — the APIC FastAPI app: auth.py (aaaLogin/aaaRefresh/ aaaLogout, cookie/session lifecycle, cert accept-mode), app.py (routes + query-param parsing → query engine → envelope + error mapping), writes.py (POST/DELETE body → MIT upsert, atomic validate-then-commit, the fabricNodeIdentP node-registration reaction).
• ndo/ — model.py builds the NDO schema/tenant/site model from the same Topology object; app.py serves the NDO/MSO REST surface.
• runtime/ — config.py (env-driven ports/binds/paths), supervisor.py (loads topology, builds all stores, starts the three TLS servers, keeps a baseline snapshot for /_sim/reset).
• control/ — the /_sim/* test-orchestration router mounted on every APIC app (reset/snapshot/restore/reload/add-leaf/remove-leaf) — not part of the real ACI API surface.

Data flow

topology.yaml → load_topology() validates and produces a typed Topology → build_all() runs each site's builders in dependency order (cabling before underlay/overlay; endpoints before tenants/routing/zoning, so those can read back real endpoint ports) → one MITStore per site → make_apic_app() wraps each store in a FastAPI app implementing the query engine + write path → build_ndo_model() derives the NDO schema from the same Topology → make_ndo_app() serves it. runtime/supervisor.py starts all three apps as uvicorn servers over TLS, and keeps a baseline copy of each store so /_sim/reset can restore it.

Two run modes

This is the key differentiator versus "just run three dev servers":

	Port mode (default)	Sandbox mode
Addressing	one shared bind address (SIM_BIND, default 127.0.0.1), three distinct ports: 8443 (APIC site A), 8444 (APIC site B), 8445 (NDO)	one loopback IP alias per device, all on the standard HTTPS port :443 — no port numbers, exactly like real gear
Started by	scripts/run.sh	scripts/sandbox-up.sh (root required)
Use case	everyday development, Ansible playbooks, CI, direct APIC login	NDO auto-discovery ("Connect All Sites"), which connects to each site's APIC by IP on port 443 and cannot be redirected to a host:port form
Platform handling	n/a	branches on uname -s: macOS uses ifconfig lo0 alias, Linux uses ip addr add … dev lo; the client under test is never modified

Sandbox mode exists because some NDO/multi-site-orchestration clients hardcode port 443 for auto-discovered sites and have no field to enter an alternate port — the only way to satisfy that client without patching it is to give each simulated controller a real, individually addressable IP. The IPs come from topology.yaml (fabric.ndo_mgmt_ip + each site's mgmt_ip) and are added/removed as loopback aliases by sandbox-up.sh/sandbox-down.sh, which also verify the previous instance is a genuine aci_sim.runtime.supervisor process before killing it, and confirm the new servers actually answer on :443 before declaring success.

---

3. Dependencies

From requirements.txt:

Package	Purpose
fastapi>=0.110	REST app framework for the APIC/NDO planes
uvicorn[standard]>=0.29	ASGI server (TLS termination, asyncio event loop)
pydantic>=2.6	Topology schema validation
pyyaml>=6.0	topology.yaml parsing
httpx>=0.27	Used by FastAPI's TestClient in tests
pytest>=8.0	Test runner
pytest-asyncio>=0.23	Async test support (asyncio_mode = "auto")

Python 3.11+ (see pyproject.toml, requires-python = ">=3.11"). No database, no external services — everything is in-memory.

---

4. Usage / Quickstart

Install

Direct from GitHub (simplest — no clone needed):

pip install git+https://github.com/dtzp555-max/aci-sim.git

From source (dev — editable install, test/lint extras):

git clone https://github.com/dtzp555-max/aci-sim.git
cd aci-sim
python -m venv .venv
source .venv/bin/activate        # Windows: .venv\Scripts\activate
pip install -e '.[dev]'          # installs aci_sim + fastapi/uvicorn/pydantic/pyyaml + httpx/pytest

pip install aci-sim will work once the project is published to PyPI (not yet published — use one of the two forms above until then).

Note: pip install git+https://... installs the package only — aci_sim (the library + the aci-sim CLI). It does NOT check out scripts/, examples/, deploy/, or topology.yaml (those live in the git repo, not the installed package). That's fine for everyday use — aci-sim run / aci-sim query / aci-sim new / aci-sim graph work standalone and scaffold their own topology.yaml — but if you want scripts/sandbox-up.sh, the Ansible examples, or the systemd/launchd deploy sketches, use the "from source" clone below instead.

Port mode (default)

aci-sim run
# or, equivalently, from a clone (see scripts/run.sh):
bash scripts/run.sh

Generates a self-signed cert on first run (scripts/gen_certs.sh's logic, either via aci-sim run or scripts/run.sh) and starts:

[sim] APIC LAB1 (asn 65001) → https://127.0.0.1:8443
[sim] APIC LAB2 (asn 65002) → https://127.0.0.1:8444
[sim] NDO → https://127.0.0.1:8445

Smoke test — like real APIC, every query requires aaaLogin first (a bare curl .../class/fabricNode.json returns a 403 APIC error envelope, not the fabric); aci-sim query does the login+cookie dance for you:

aci-sim query fabricNode

CLASS            NAME/KEY                     EXTRA        DN
fabricNode       LAB1-ACI-SP01                spine        topology/pod-1/node-201
fabricNode       LAB1-ACI-SP02                spine        topology/pod-1/node-202
fabricNode       LAB1-ACI-LF101               leaf         topology/pod-1/node-101
fabricNode       LAB1-ACI-LF102               leaf         topology/pod-1/node-102
fabricNode       LAB1-ACI-LF103               leaf         topology/pod-1/node-103
fabricNode       LAB1-ACI-LF104               leaf         topology/pod-1/node-104
fabricNode       LAB1-ACI-APIC01              controller   topology/pod-1/node-1

Equivalently, the full authenticated curl (if you don't have aci-sim on PATH, e.g. scripting against a remote sim):

TOKEN=$(curl -sk https://127.0.0.1:8443/api/aaaLogin.json \
  -X POST -d '{"aaaUser":{"attributes":{"name":"admin","pwd":"cisco"}}}' \
  | python3 -c 'import json,sys; print(json.load(sys.stdin)["imdata"][0]["aaaLogin"]["attributes"]["token"])')
curl -sk https://127.0.0.1:8443/api/class/fabricNode.json -H "Cookie: APIC-cookie=$TOKEN" | python3 -m json.tool

Sandbox mode (real per-device IPs on :443)

Needed for NDO "Connect All Sites" auto-discovery, which addresses each site by IP on the standard HTTPS port with no port field.

macOS:

sudo bash scripts/sandbox-up.sh     # aliases 10.192.0.10/.11 + 10.192.128.11 on lo0, serves :443
# point your NDO client at 10.192.0.10 to exercise auto-discovery
sudo bash scripts/sandbox-down.sh   # stop the sim + remove the aliases

Linux: the same two scripts detect uname -s == Linux and use ip addr add/del … dev lo instead of ifconfig lo0 alias; invocation is identical (sudo bash scripts/sandbox-up.sh / sandbox-down.sh).

The IPs live in topology.yaml — edit fabric.ndo_mgmt_ip and each site's mgmt_ip if they clash with your network.

Ansible quickstart

examples/ansible/ contains a validated cisco.aci playbook set — see examples/ansible/README.md for exact run instructions against either run mode.

cd examples/ansible
ansible-playbook -i inventory.ini smoke.yml       # create + idempotency check
ansible-playbook -i inventory.ini teardown.yml    # state=absent cleanup

Running as a background service

For a standing deployment (e.g. a lab host reachable from other machines), see deploy/README.md for a systemd --user unit (Linux) and a launchd plist sketch (macOS).

---

5. CLI

pip install -e . installs an aci-sim console script (backed by aci_sim/cli.py) that makes topology.yaml easier to author, validate, preview, and run — without a web UI and without changing the config format. topology.yaml remains the single source of truth; aci-sim is a thin, purely-additive convenience layer around topology.loader.load_topology() and the existing supervisor.

aci-sim validate [TOPOLOGY]

Loads and validates a topology file (default ./topology.yaml) — the same Pydantic v2 validation (Topology.normalize_and_validate) the sim always runs at startup, wrapped in a friendly pass/fail summary. This is the CI gate: exit 0 + summary on success, exit non-zero + readable error list on failure.

$ aci-sim validate
OK: 2 site(s), 3 tenant(s)
  - LAB1: 2 leaves, 2 spines, 2 border leaves
  - LAB2: 2 leaves, 2 spines, 2 border leaves

aci-sim show [TOPOLOGY]

Prints the derived inventory you need before pointing a client at the sim: each site's APIC host/mgmt IP/ASN/pod/fabric name/OOB gateway, every node's role, model, version, and derived loopback/OOB IP (via the same build/fabric.py::loopback_ip/oob_ip the builders use), the NDO mgmt IP, and the port/IP each controller will actually listen on (port mode vs sandbox mode, read from runtime/config.py). Add --json for machine-readable output (e.g. to feed inventory into another tool).

$ aci-sim show
Fabric: LAB-IT-ACI  (NDO mgmt IP: 10.192.0.10)
  tep_pool=10.0.0.0/16 infra_vlan=3967 gipo_pool=225.0.0.0/15
  oob_subnet=- inb_subnet=- (store-only) default_bd_mac=00:22:BD:F8:19:FF
  isn: enabled=True peer_mesh=full ospf_area=0.0.0.0 mtu=9150 ospf_hello=10 ospf_dead=40
  isn bfd (store-only): min_rx=50 min_tx=50 multiplier=3

Site LAB1: APIC host=127.0.0.1:8443 mgmt_ip=10.192.0.11 asn=65001 pod=1 controllers=1 apic_version=4.2(7f) fabric_name=LAB1-IT-ACI controller_ips=10.192.0.11 oob_gateway=-
  ID     NAME                 ROLE         MODEL          VERSION          SERIAL         LOOPBACK       OOB IP
  101    LAB1-ACI-LF101       leaf         N9K-C9332C     n9000-14.2(7f)   SAL10101       10.1.101.1     192.168.1.101
  ...

Site LAB2: APIC host=127.0.0.1:8444 mgmt_ip=10.192.128.11 asn=65002 pod=1 controllers=1 apic_version=4.2(7f) fabric_name=LAB2-IT-ACI controller_ips=10.192.128.11 oob_gateway=-
  ID     NAME                 ROLE         MODEL          VERSION          SERIAL         LOOPBACK       OOB IP
  301    LAB2-ACI-LF301       leaf         N9K-C9332C     n9000-14.2(7f)   SAL20301       10.1.45.2      192.169.1.45
  ...

Port bindings:
  LAB1     (apic) -> https://127.0.0.1:8443
  LAB2     (apic) -> https://127.0.0.1:8444
  NDO      (ndo ) -> https://127.0.0.1:8445

$ aci-sim show --json | jq '.sites[0].nodes[0]'
{
  "id": 101,
  "name": "LAB1-ACI-LF101",
  "role": "leaf",
  "model": "N9K-C9332C",
  "version": "n9000-14.2(7f)",
  "serial": "SAL10101",
  "loopback_ip": "10.1.101.1",
  "oob_ip": "192.168.1.101"
}

aci-sim lldp [TOPOLOGY]

Builds the topology fresh (same builders the sim boots with) and prints a show lldp neighbors-style table of every lldpAdjEp adjacency — i.e. the neighbor relationships the cabling in topology.yaml implies (spine<->leaf links, APIC<->leaf attachment, plus — multi-site only — each spine's ISN uplink toward the inter-site switch, ISN-CSW{site}), materialized exactly the way they'd appear on a running sim (§10's LLDP/CDP fidelity). Pass --cdp to read cdpAdjEp instead. This does not start any server — it's a static, read-only view of one freshly-built site (or all sites).

$ aci-sim lldp
Site LAB1 — node-101 (LAB1-ACI-LF101)
  Local Port  Neighbor          Neighbor Port  Mgmt IP        Platform
  eth1/1      LAB1-ACI-APIC01   eth1/1         10.192.0.11    Cisco APIC
  eth1/49     LAB1-ACI-SP01     eth1/1         192.168.1.201  N9K-C9332C
  eth1/50     LAB1-ACI-SP02     eth1/1         192.168.1.202  N9K-C9332C

Site LAB2 — node-301 (LAB2-ACI-LF301)
  Local Port  Neighbor          Neighbor Port  Mgmt IP        Platform
  eth1/1      LAB2-ACI-APIC01   eth1/1         10.192.128.11  Cisco APIC
  eth1/49     LAB2-ACI-SP01     eth1/1         192.169.1.145  N9K-C9332C
  ...

$ aci-sim lldp --cdp --site LAB1 --node 101 --json
[
  {
    "local_node_id": 101,
    "local_node_name": "LAB1-ACI-LF101",
    "local_port": "eth1/1",
    "neighbor": "LAB1-ACI-APIC01",
    "neighbor_port": "eth1/1",
    "mgmt_ip": "10.192.0.11",
    "platform": "APIC-SERVER-M3",
    "site": "LAB1"
  }
]

Flags: TOPOLOGY positional (default ./topology.yaml), --cdp (show cdpAdjEp neighbors instead of lldpAdjEp), --site NAME (filter to one site; default all sites), --node ID (filter to one local node id; default all nodes), --json (machine-readable output instead of the grouped text table).

aci-sim graph [TOPOLOGY] -o FILE.html

Renders a self-contained visual topology diagram of the built fabric — spines, leaves, border leaves (with vPC pairs), per-site controllers, and (for multi-site topologies) the ISN cloud connecting each site's spines — as either an .html file (inline SVG + inline CSS, ready to double-click and open in any browser) or a raw .svg file. Output format is inferred from the -o extension. There is no CDN dependency, no local web server, and no npm build step: the file is plain hand-generated SVG markup, so it opens directly from disk. It complements aci-sim show (show = text inventory, graph = visual diagram) and visually mirrors autoACI's topology-view color language (spine = blue, leaf/border-leaf = green, controller = amber, ISN cloud = slate) — a standalone Python reimplementation, not a code import.

$ aci-sim graph -o topology.html
[aci-sim] wrote topology diagram: topology.html

$ aci-sim graph lab3.topology.yaml -o lab3.svg
[aci-sim] wrote topology diagram: lab3.svg

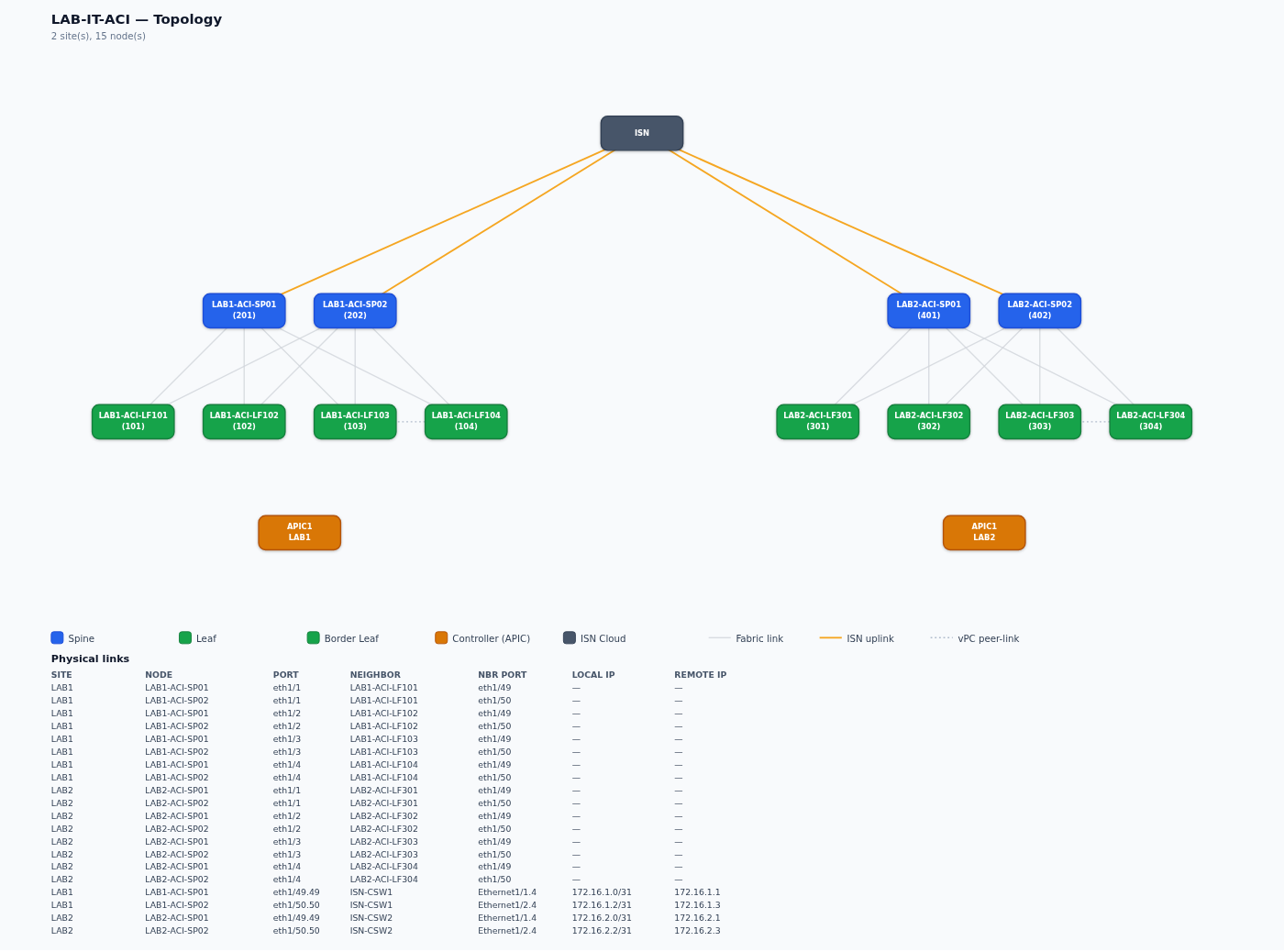

What the diagram looks like (this repo's default topology.yaml, exported to PNG):

2 sites, 15 nodes total — spines (blue), leaves/border-leaves (green), controllers (amber), ISN cloud (slate).

Flags: TOPOLOGY positional (default ./topology.yaml), -o/--output (default topology.html; .html/.htm writes an HTML wrapper, .svg writes raw SVG).

aci-sim query [CLASS]

A zero-friction, authenticated MIT query helper — the ACI/NDO REST API requires aaaLogin before any query (§10's error-handling section, real-APIC behavior), so a bare curl .../class/fabricNode.json returns a 403 APIC error envelope instead of data. aci-sim query does the aaaLogin -> APIC-cookie -> GET /api/class|mo/... dance for you, with no new dependency (stdlib urllib.request/ssl/http.cookies only — httpx stays a dev/test-only extra, see §3).

CLASS (e.g. fabricNode, fvTenant, topSystem) runs a class query; --dn DN runs a single-MO query instead. Default output is a compact table (one row per MO); --json prints the raw APIC envelope.

$ aci-sim query fabricNode
CLASS            NAME/KEY                     EXTRA        DN
fabricNode       LAB1-ACI-SP01                spine        topology/pod-1/node-201
fabricNode       LAB1-ACI-SP02                spine        topology/pod-1/node-202
fabricNode       LAB1-ACI-LF101               leaf         topology/pod-1/node-101
fabricNode       LAB1-ACI-LF102               leaf         topology/pod-1/node-102
fabricNode       LAB1-ACI-LF103               leaf         topology/pod-1/node-103
fabricNode       LAB1-ACI-LF104               leaf         topology/pod-1/node-104
fabricNode       LAB1-ACI-APIC01              controller   topology/pod-1/node-1

$ aci-sim query fvTenant
CLASS            NAME/KEY                     EXTRA        DN
fvTenant         mgmt                         -            uni/tn-mgmt
fvTenant         MS-TN1                       -            uni/tn-MS-TN1
fvTenant         SF-TN1-LAB1                  -            uni/tn-SF-TN1-LAB1

$ aci-sim query --dn uni/tn-mgmt --json
{
  "imdata": [
    {
      "fvTenant": {
        "attributes": {
          "dn": "uni/tn-mgmt",
          "name": "mgmt",
          "descr": ""
        }
      }
    }
  ],
  "totalCount": "1"
}

Flags: CLASS positional (omit if using --dn), --dn DN (mo-query a single DN instead of a class query), --host (default 127.0.0.1:8443, port-mode LAB1), --user/--password (default admin/cisco), --json (raw APIC envelope instead of the table). On a connection error (sim not running), prints a friendly hint instead of a traceback:

$ aci-sim query fabricNode
ERROR: could not connect to 127.0.0.1:8443 — is the sim running? start it with `aci-sim run`

aci-sim run [TOPOLOGY]

A thin wrapper around python -m aci_sim.runtime.supervisor — it validates the topology up front (a friendly error instead of a raw traceback), sets TOPOLOGY_PATH to the given file, resolves + injects the admin credentials the APIC plane will enforce (see "Admin account / credentials" below), passes through SIM_BIND/SIM_SANDBOX/etc. from the current environment unmodified, and execs the supervisor (so it prints the same [sim] APIC ... -> https://... lines you'd see from scripts/run.sh). It does not reimplement the supervisor — scripts/run.sh keeps working unchanged.

$ aci-sim run
[aci-sim] Auth: APIC admin 'admin' (from topology.yaml's auth: section)
[aci-sim] running supervisor with TOPOLOGY_PATH=topology.yaml
[sim] APIC LAB1 (asn 65001) → https://127.0.0.1:8443
[sim] APIC LAB2 (asn 65002) → https://127.0.0.1:8444
[sim] NDO → https://127.0.0.1:8445

$ SIM_BIND=0.0.0.0 aci-sim run lab2.topology.yaml

aci-sim new

Scaffolds a fresh, minimal, valid topology.yaml to stdout (or -o FILE), using the same node-ID scheme documented in topology/schema.py (leaves: base 101, +200/site; spines: base 201, +200/site; border leaves: placed outside both ranges, in vPC pairs). The output always passes aci-sim validate and boots.

$ aci-sim new --sites 3 --leaves-per-site 4 -o lab3.topology.yaml
Wrote lab3.topology.yaml
$ aci-sim validate lab3.topology.yaml
OK: 3 site(s), 3 tenant(s)
  - LABA: 4 leaves, 2 spines, 2 border leaves
  - LABB: 4 leaves, 2 spines, 2 border leaves
  - LABC: 4 leaves, 2 spines, 2 border leaves

Flags: --sites N (default 2), --leaves-per-site N (default 2, max 100 — see "Leaf/spine count elasticity" note below), --spines-per-site N (default 2, max 100), --border-pairs N (default 1, = 2 border leaves per site; combined with --leaves-per-site/--spines-per-site is also subject to the same per-site node-ID budget), --asn A,B,... (per-site fabric ASN; default 65001,65002,...), --fabric-name-prefix (default LAB), --ndo-ip (default 10.192.0.10), --apic-ip-base (default 10.192), --controllers N (APIC cluster size per site; default 1, range 1-5 — single-APIC by design, see §6a below; set to 3+ for multi-controller/ cluster-health testing), --tep-pool CIDR (default 10.0.0.0/16), --infra-vlan N (default 3967), --gipo-pool CIDR (default 225.0.0.0/15), --isn-ospf-area (default 0.0.0.0; Tier-2, PR-19), --isn-mtu N (default 9150, range 576-9216; Tier-2, PR-19), --isn-ospf-hello N (default 10; Tier-3, PR-20), --isn-ospf-dead N (default 40; Tier-3, PR-20), --isn-bfd-min-rx/--isn-bfd-min-tx N (default 50/50; Tier-3, PR-20, store-only), --isn-bfd-multiplier N (default 3, range 1-50; Tier-3, PR-20, store-only), --default-bd-mac MAC (default 00:22:BD:F8:19:FF, the real ACI default; Tier-3, PR-20), -o/--output (default: stdout).

Leaf/spine count elasticity (PR-19): --leaves-per-site/ --spines-per-site work at any count up to 100 (e.g. --leaves-per-site 8 --spines-per-site 4), and --border-pairs works for more than 1 pair — all generate collision-free node IDs. Beyond count 100 per block (or a --border-pairs count that would push the border block past the next site's leaf range), aci-sim new now rejects the request with a clear error naming the offending flag instead of silently emitting a topology.yaml that fails deep inside Topology.normalize_and_validate with a generic "node ids collide" message — this is a hard ceiling of the node-ID scheme itself (site_offset=200 per topology/schema.py's docstring), not a bug fixable without a breaking change to node-ID semantics for existing files.

aci-sim init [-o topology.yaml]

An interactive Q&A wizard modeled on the real APIC's first-boot setup dialog — it prompts for each field with a suggested default shown in [brackets]; press ENTER to accept it, or type a custom value. It is a thin front-end over the SAME generate_topology() function aci-sim new calls (extended, PR-22, to also accept per-site overrides and per-site node counts) — it does not duplicate topology-emission logic, and its output always passes aci-sim validate and boots, same as new.

Fields asked, mirroring real APIC's dialog plus this sim's multi-site extras:

• Step 0 — admin account: admin username (default admin), admin password (default cisco), then NDO uses the same admin account as APIC? (default yes). Answering "no" additionally asks for a separate NDO username/password. See "Admin account / credentials" below for what this account actually controls.
• Step 1 — deployment type: 1) Single fabric or 2) Multi-site (2+ fabrics via ISN+NDO) (default 2). Real APIC's dialog also offers "multi-pod" — this sim doesn't build true multi-pod fabrics (no per-pod spine/leaf partitioning or IPN), so that choice is deliberately not offered; a single fabric can still set a non-default Pod ID per-site.
• Step 2 — per site (looped once per site; multi-site additionally asks "Number of sites"): fabric/site name, site ID, BGP AS, Pod ID, number of APIC controllers (1-5), APIC OOB mgmt IP, then — if controllers > 1 — one prompt per additional controller, each suggesting the previous controller's IP + 1 (accept with ENTER or type a custom IP; maps to PR-21's Site.controller_ips), then the OOB gateway (asked once per site; maps to Site.oob_gateway — see §6c — and lands on the real mgmtRsOoBStNode.gw MO for every node at that site, build/mgmt.py), TEP pool, infra VLAN, multicast/GIPo pool, OOB mgmt subnet, number of spines/leaves/border-leaf pairs.
• Step 3 — multi-site only: NDO/ND mgmt IP, ISN OSPF area, ISN MTU (inter-site EVPN uses each fabric's own BGP AS from Step 2 — there is no separate ISN AS).
• Step 4 — confirm + write: prints a summary, asks Write to topology.yaml? [yes], writes the file, then auto-runs aci-sim validate on the result and prints OK (or the errors).

$ aci-sim init
This wizard collects the same setup information as a real APIC's
first-boot dialog, then generates a topology.yaml for aci-sim.
Press ENTER to accept a suggested default shown in [brackets].

Step 0: Admin account
  Admin username [admin]:
  Admin password [cisco]:
  NDO uses the same admin account as APIC? [yes]:

Step 1: Deployment type
Deployment type: 1) Single fabric  2) Multi-site (2+ fabrics via ISN+NDO) [2]: 1

Step 2: Site 1 of 1
  Fabric/site name [Site1-IT-ACI]: MyLab-IT-ACI
  Site ID [1]:
  BGP AS (fabric) [65001]:
  Pod ID [1]:
  Number of APIC controllers [1]: 3
  APIC OOB mgmt IP [10.192.0.11]:
  APIC-2 OOB IP [10.192.0.12]:
  APIC-3 OOB IP [10.192.0.13]: 10.192.0.20
  APIC OOB gateway (shared by all controllers at this site) [10.192.0.1]:
  TEP pool [10.0.0.0/16]:
  Infra VLAN (1-4094) [3967]:
  Multicast/GIPo pool [225.0.0.0/15]:
  OOB mgmt subnet [192.168.0.0/16]:
  Number of spines [2]:
  Number of leaves [2]:
  Number of border-leaf pairs [1]:

Summary:
  Admin account: username=admin password=c***  (NDO: same account — lenient by design, accepts any credential)
  Fabric: MyLab-IT-ACI
  ISN/multi-site enabled: False
  APIC OOB gateway (site 1): 10.192.0.1
  Site MyLab-IT-ACI (id=1, asn=65001, pod=1): 3 controller(s) ['10.192.0.11', '10.192.0.12', '10.192.0.20'], oob_gateway=10.192.0.1, 2 spines, 2 leaves, 2 border leaves (1 pair(s))

Write to topology.yaml? [yes]:
Wrote topology.yaml
OK: 1 site(s), 1 tenant(s)
  - MyLab-IT-ACI: 2 leaves, 2 spines, 2 border leaves

This transcript was generated with aci-sim init -o topology.yaml --answers (see the "Admin account / credentials" section below for the exact command + real output); the prompt lines shown here mirror run_wizard's literal prompt text.

Note the third controller's IP was typed as a custom value (10.192.0.20) overriding the suggested sequential default (10.192.0.13 = controller 2's IP + 1) — pressing ENTER at any prompt always accepts the bracketed suggestion instead.

Non-interactive use (CI/scripting — never blocks waiting for input):

• --defaults — accept every suggested default without prompting. Auto-enabled whenever stdin is not a TTY (e.g. piped/redirected/ subprocess with stdin=DEVNULL), so aci-sim init -o topology.yaml in a script or CI job completes immediately with the wizard's defaults even without the flag.
• --answers FILE — a YAML or JSON file of pre-filled field-name -> value answers (e.g. {"deployment_type": "2", "site1_controllers": "3"}). Listed fields are used verbatim (no prompt); unlisted fields fall back to prompting/defaults as usual. Field names: admin_username, admin_password, ndo_same_account (yes/no), ndo_username/ ndo_password (only consulted if ndo_same_account is no); deployment_type, num_sites (multi-site only), then per site index N: siteN_name, siteN_id, siteN_asn, siteN_pod, siteN_controllers, siteN_apicC_ip (C = 1..controllers), siteN_gateway, siteN_tep_pool, siteN_infra_vlan, siteN_gipo_pool, siteN_oob_subnet, siteN_spines, siteN_leaves, siteN_border_pairs; multi-site only: ndo_mgmt_ip, isn_ospf_area, isn_mtu; and confirm_write (yes/no) to skip the final confirm prompt too.

$ aci-sim init --defaults -o lab.topology.yaml
...
Wrote lab.topology.yaml
OK: 2 site(s), 2 tenant(s)
  - Site1-IT-ACI: 2 leaves, 2 spines, 2 border leaves
  - Site2-IT-ACI: 2 leaves, 2 spines, 2 border leaves

-o/--output (default: ./topology.yaml).

Admin account / credentials

aci-sim init's Step 0 is where you set the fabric admin account — it ends up as an auth: section in topology.yaml:

auth:
  username: admin
  password: cisco

The APIC plane ENFORCES this account — aci-sim run resolves it and injects SIM_USERNAME/SIM_PASSWORD before execing the supervisor, and rest_aci/auth.py's aaaLogin 401s on any mismatch (see §7 below). NDO shares the same account by default (the wizard's ndo_same_account: yes default) but stays lenient by design regardless — ndo/app.py's /api/v1/auth/login//login accept any credential and never validate a token, matching this sim's long-standing NDO client-compat behavior (see §8 "Known limitations"). Answering "no" to ndo_same_account only changes what NDO is told (auth.ndo_username/auth.ndo_password, informational), never what it checks.

Precedence aci-sim run uses to resolve SIM_USERNAME/SIM_PASSWORD (highest first):

1. SIM_USERNAME already set in your shell environment — an explicit env override always wins (preserves existing CI/env-override workflows); topology.yaml's auth: is ignored even if present.
2. topology.yaml has an auth: section (written by the wizard) — its username/password are injected.
3. Neither — nothing is injected; rest_aci/auth.py falls back to its own SIM_USERNAME/SIM_PASSWORD-env-or-admin/cisco default, unchanged.

aci-sim run always prints which source won, e.g.:

$ aci-sim run
[aci-sim] Auth: APIC admin 'admin' (from topology.yaml's auth: section)

An existing topology.yaml with no auth: section at all (every file that predates this feature) keeps validating and behaves exactly as before — Topology.auth is Optional, defaulting to None.

---

6. Configuration

All configuration is via environment variables, read at process start (aci_sim/runtime/config.py, aci_sim/rest_aci/auth.py).

Variable	Default	Effect
SIM_BIND	127.0.0.1	Bind address for port-mode servers. Defaults to loopback-only because the /_sim control plane is unauthenticated — set SIM_BIND=0.0.0.0 explicitly for LAN deployments. Ignored in sandbox mode (always binds each device's own mgmt_ip).
SIM_USERNAME	admin	Username checked by aaaLogin. An explicit env value here always wins over a topology auth: section — see "Admin account / credentials" above.
SIM_PASSWORD	cisco	Password checked by aaaLogin; a mismatch returns a 401 APIC error envelope. Same env-wins-over-topology precedence as SIM_USERNAME.
APIC_A_PORT	8443	Port-mode port for APIC site A.
APIC_B_PORT	8444	Port-mode port for APIC site B.
NDO_PORT	8445	Port-mode port for the NDO plane.
SIM_SANDBOX	unset (0)	Set to 1/true/yes/on to enable sandbox mode (bind each device to its own mgmt_ip). Set by scripts/sandbox-up.sh; not normally set by hand.
SIM_SANDBOX_PORT	443	Port sandbox-mode servers bind to on each device's own IP.
CERT_FILE	certs/sim.crt	TLS certificate path (self-signed, all three apps).
KEY_FILE	certs/sim.key	TLS private key path.
TOPOLOGY_PATH	topology.yaml	Path to the topology definition loaded at startup and by /_sim/reload.
SIM_STATE_DIR	~/.aci-sim/state	Directory for /_sim/save//_sim/load state files (§10).
SIM_CERT_STRICT	false	Placeholder, currently a no-op. Reserved for a future mode that would verify cisco.aci certificate-signature auth (APIC-Request-Signature) against a registered public key. Today, certificate-auth requests are accepted based on the claimed identity alone (see §Error handling below) regardless of this flag.

6a. Configuration Reference — Tier-1 fabric parameters (topology.yaml)

Unlike the environment variables above, these are topology.yaml fields (aci_sim/topology/schema.py). All are optional with defaults matching the pre-existing hardcoded behavior, so an existing topology.yaml that omits them keeps validating and building byte-identical output (verified: the repo's own topology.yaml is unchanged in value and still passes aci-sim validate + the full test suite). See docs/DESIGN.md's "PR-18 — Tier-1 fabric configuration parameters" section for the full wiring detail and exactly which fields are store-only vs. builder-wired.

Single-APIC-per-fabric/site is DELIBERATE (PR-21). aci-sim defaults every site to controllers: 1 because APIC cluster size does not affect Ansible playbook deployment testing — a playbook connects to and pushes configuration through exactly one APIC endpoint, regardless of how many controllers sit behind it in real ACI. Cluster size only matters for cluster-health/appliance-vector tooling, such as autoACI's health_score.py, which reads infraWiNode across every controller in the cluster. Set controllers: 3 (+ optionally controller_ips: [...]) on a site only if you specifically need to exercise multi-controller infraWiNode/cluster-health semantics — the sim still binds exactly one REST endpoint per site either way (it does not run N separate APIC processes); controllers only changes how many controller-role fabricNode/topSystem/infraWiNode entries are built. Valid range: 1-5.

Field	Scope	Default	Wired into builders?
site.controllers	per-site	1 (PR-21; was 3 pre-PR-21)	Yes — APIC cluster size, range 1-5; drives the fabricNode/topSystem/firmwareCtrlrRunning controller loop, the infraWiNode appliance-vector (viewer × member), health_faults.py, and endpoints.py's APIC-reserved-port accounting in build/fabric.py and friends.
site.controller_ips	per-site	unset (PR-21)	Yes, when set — one OOB mgmt IP per controller, in order (controller_ips[0] = controller 1's topSystem.oobMgmtAddr, etc.); length must equal controllers. When unset, IPs are auto-derived sequentially from site.mgmt_ip (controller 1 = mgmt_ip, controller 2 = mgmt_ip+1, ...). If mgmt_ip is also unset, falls back further to the legacy per-node oob_ip(pod, cid) scheme (pre-PR-21 behavior, unchanged).
site.pod	per-site	1	Yes — every topology/pod-{N}/... DN across all builders reads site.pod; a pod: 2 site builds all its DNs under pod-2.
fabric.tep_pool	fabric-wide	"10.0.0.0/16"	Store + CIDR-validate + surface only (aci-sim show/new). No builder derives a per-node address from it — loopback_ip()/oob_ip() remain the actual address source.
fabric.infra_vlan	fabric-wide	3967	Store + range-validate (1-4094) + surface only. No MIT class in the current catalog carries a distinct infra-VLAN attribute.
fabric.gipo_pool	fabric-wide	"225.0.0.0/15"	Store + CIDR-validate + surface only.
Auto-generated node serial	per-node	f"SAL{{site_id}}{{node_id:04d}}"	Yes — build/fabric.py's default_serial() fallback whenever a Node.serial is empty (used by fabricNode.serial and fabricNodeIdentP.serial, which cisco.aci.aci_fabric_node keys registration on). An explicit serial: in the YAML always overrides.

N-site note: aci-sim new --sites N and the node-ID/pod/controller wiring above work for arbitrary N with zero collisions. ISN inter-site peering and stretched-tenant HOME/REMOTE endpoint placement do not — both rely on Topology.other_site(), which resolves to "the first other site in YAML order", not "every other site" (pre-existing, not introduced by PR-18). Practical effect: with 3+ sites, ISN is not a true full mesh (each site only peers with one other), even though isn.peer_mesh: full is set. See docs/DESIGN.md PR-18 section for the exact verification and why fixing it is out of scope here.

6b. Configuration Reference — Tier-2 topology-elasticity parameters (topology.yaml)

Same backward-compat guarantee as §6a: all fields below are optional with defaults matching pre-existing behavior. See docs/DESIGN.md's "PR-19 — Tier-2 topology-elasticity parameters" section for the full wiring detail.

Field	Scope	Default	Wired into builders?
isn.ospf_area	fabric-wide	"0.0.0.0"	Yes — build/underlay.py's ospfIf.area/ospfAdjEp.area (was a hardcoded "0.0.0.0" literal). Accepts either dotted-decimal ("0.0.0.0") or decimal-integer ("0") OSPF area notation.
isn.mtu	fabric-wide	9150	Yes — build/interfaces.py's dedicated ISN/IPN spine uplink l1PhysIf.mtu (was hardcoded to the general fabric 9216 value, same as every other port). Only the ISN uplink port changes; ordinary intra-fabric ports keep 9216. Range-validated 576-9216.
isn.peer_mesh	fabric-wide	"full"	Validate-and-reject for any value other than "full" (unchanged from PR-17/18). "partial" mesh has no sensible default partition without additional per-site config the schema doesn't carry (which spine pairs with which isn't inferable from spine count alone) — build/overlay.py fails fast rather than silently building full-mesh or an undefined subset.
access.vmm_domains[].vcenter_ip	per-domain	"" (unset)	Yes, when set — build/access.py emits a vmmCtrlrP child of the domain's vmmDomP with hostOrIp=vcenter_ip. Unset → no vmmCtrlrP/vmmUsrAccP is built (just a bare vmmDomP).
access.vmm_domains[].datacenter	per-domain	"" (unset)	Yes, when vcenter_ip is set — vmmCtrlrP.rootContName; defaults to the domain's own name if unset.
access.vmm_domains[].vcenter_dvs	per-domain	"" (unset)	Yes, when set — vmmCtrlrP.dvsName.
access.vmm_domains[].vlan_pool	per-domain	"" (unset)	Yes, when set — binds an infraRsVlanNs under the vmmDomP to the referenced access.vlan_pools[] entry (same pattern phys/l3 domains already use). Cross-referenced against access.vlan_pools[].name at validation time.

VMM domain is a pure addition, not a rewire (PR-19 design note): no existing builder or the real production chains (autoACI sandbox e2e / aci-py MS-TN1) read a vmmDomP/vmmCtrlrP MIT object today. The real bind_epg_to_vmm_domain playbook (verified read-only against aci-py's playbooks.py + content/templates/bind_epg_to_vmm_domain.j2.yml on the hardware test bed) writes an NDO schema domainAssociations entry referencing the VMM domain purely by DN string (uni/vmmp-VMware/dom-<name>) — it never touches an APIC-side vmmDomP object, so access.vmm_domains defaults to an empty list (unlike phys_domains/l3_domains/aaeps, which each default to one seeded entry) and adding it changes zero existing builder output. bind_epg_to_physical_domain, by contrast, DOES read a real physDomP, which is why that one already existed pre-PR-19.

6c. Configuration Reference — Tier-3 fine-tuning parameters (topology.yaml)

Same backward-compat guarantee as §6a/§6b: all fields below are optional with defaults matching pre-existing behavior (or the real ACI factory default, for fields that had no prior value at all). This is the last planned param tier. See docs/DESIGN.md's "PR-20 — Tier-3 fine-tuning parameters" section for the full wiring detail.

Field	Scope	Default	Wired into builders?
bd.mac	per-BD	unset (falls back to fabric.default_bd_mac)	Yes — build/tenants.py's fvBD.mac.
fabric.default_bd_mac	fabric-wide	"00:22:BD:F8:19:FF" (real ACI default)	Yes — same fvBD.mac, used when a BD doesn't set its own bd.mac. This is the exact literal build/tenants.py already hardcoded for every BD pre-PR-20, so the default produces byte-identical output.
l3out.csw_peer.keepalive / .hold	per-L3Out-peer	60 / 180 (real ACI defaults)	Yes — build/l3out.py's bgpPeerP.keepAliveIntvl/holdIntvl. hold must exceed keepalive.
isn.ospf_hello / isn.ospf_dead	fabric-wide	10 / 40 (real ACI defaults)	Yes — build/underlay.py's ospfIf.helloIntvl/deadIntvl. ospf_dead must exceed ospf_hello.
isn.bfd_min_rx / isn.bfd_min_tx / isn.bfd_multiplier	fabric-wide	50 / 50 / 3 (real ACI defaults)	No — store + range-validate + surface only (aci-sim show/new). This sim builds no bfdIfP-style MO anywhere; adding a faithful one would additionally require a believable oper-state tree with no verified consumer to anchor its shape against.
fabric.oob_subnet	fabric-wide	unset	No — store + CIDR/range-validate (must fall within 192.168.0.0/16) + surface only. build/fabric.py's oob_ip() derives every node's OOB address from (pod, node_id) only, same documented limitation as fabric.oob_pool itself.
fabric.inb_subnet	fabric-wide	unset	No — store + CIDR/range-validate (must fall within a private RFC1918 range) + surface only. This sim has no in-band mgmt MO (mgmtInB/inbMgmtAddr) anywhere; adding one would require a new mgmt-tenant builder, out of scope for this PR.
fabric.default_apic_version	fabric-wide	unset (falls back to each site's own site.apic_version)	Yes — build/fabric.py's controller fabricNode.version/topSystem.version/firmwareCtrlrRunning.version, taking precedence over site.apic_version when set. site.apic_version (PR-18 lineage) is already independently settable from switch-node Node.version (PR-18); this field adds a fabric-wide override so one value covers every site instead of repeating apic_version: per site.
site.oob_gateway	per-site	unset (None)	Yes — build/mgmt.py's mgmtRsOoBStNode.gw, one per node (switches + controllers) at this site, under the new mgmt-tenant scaffolding uni/tn-mgmt/mgmtp-default/oob-default (fvTenant/mgmtMgmtP/mgmtOoB). This is the OOB-gateway PR: aci-sim init's wizard already asked this question but discarded the answer (no schema field, no MO); it now writes it here. Unset → the same MOs still build, just with an empty gw (no gateway invented/derived — see build/mgmt.py).

BD MAC default is a genuine backward-compat guarantee, not just a plausible-looking default: build/tenants.py's _build_bd already hardcoded the literal "00:22:BD:F8:19:FF" (the real ACI default gateway MAC) for every BD before this PR — fabric.default_bd_mac's schema default reproduces that exact value, so omitting both bd.mac and fabric.default_bd_mac from topology.yaml produces byte-identical fvBD.mac output to pre-PR-20.

APIC version is already fully wired, independent of switch version (PR-18/PR-9 lineage): site.apic_version has driven the controller fabricNode/topSystem/firmwareCtrlrRunning since PR-9/PR-18, completely independently of the per-node switch Node.version field. PR-20 does not change that wiring — it adds fabric.default_apic_version as a fabric-wide override on top, and surfaces the effective per-site APIC version (after resolving that override) in aci-sim show, which previously showed no APIC version at all.

---

7. Error handling

The simulator follows APIC's real error-envelope shape and status-code semantics rather than generic REST conventions — this is load-bearing for any client (like cisco.aci) that branches on APIC's exact codes.

Error envelope (all non-2xx responses):

{"imdata":[{"error":{"attributes":{"text":"<message>","code":"<code>"}}}]}

Auth semantics:

• POST /api/aaaLogin.json — credentials checked against SIM_USERNAME/SIM_PASSWORD. Mismatch → 401 ("Authentication failed: invalid username or password"). Malformed body (wrong shape / non-JSON) → 400 APIC envelope — never FastAPI's raw {"detail": [...]} validation-error shape.
• Every /api/class/*, /api/mo/*, and /api/node/class/* route requires a live, unexpired APIC-cookie (minted by aaaLogin, renewed by aaaRefresh, expiring after refreshTimeoutSeconds — 600s by default). Missing/unknown/expired cookie → 403 ("Token was invalid (Error: Token timeout)").
• Certificate-signature auth (cisco.aci's password-less private_key mode) is accepted in accept-mode: the four APIC-Certificate-*/ APIC-Request-Signature cookies are checked for presence and that the claimed username matches SIM_USERNAME — the RSA-SHA256 signature bytes are never verified. See docs/DESIGN.md's "Certificate accept-mode trust model" section. Do not expose this to anything internet-reachable or multi-tenant — anyone who can reach the sim can authenticate as SIM_USERNAME with four unsigned cookies.
• The /_sim/* control router and /api/aaaLogin.json/aaaLogout.json are intentionally exempt from the session-cookie gate (bootstrapping + test tooling depend on them being reachable pre-auth).

Query/write error codes:

• 400 — malformed query-target-filter expression (code="107"), out-of-range/non-numeric page/page-size (code="107"), malformed aaaLogin body, or a POST body with a malformed node anywhere in the tree (atomic validation — the whole write is rejected, store untouched).
• 200 + empty envelope, not 404, for a GET /api/mo/{dn}.json on a well-formed but nonexistent DN ({"imdata":[],"totalCount":"0"}) — this matches real APIC and is required for cisco.aci's state=present modules, which GET-before-write and treat any non-200 GET as fatal. /api/class/* and /api/node/class/* already return 200-empty for a query matching nothing.
• DELETE /api/mo/{dn}.json (state=absent) is server-side idempotent — 200-empty whether the DN existed or not.

Never-500 contract: every documented input shape (malformed filters, bad pagination, atomic write validation failures, expired sessions) maps to a 400/401/403 APIC error envelope, never a bare 500 or an unhandled exception. See docs/CONTRACT.md §5 for the full mapping and docs/DESIGN.md for the write-path atomicity design.

---

8. Known limitations

• ISN/stretched-tenant correctness is verified for exactly 2 sites — Topology.other_site() resolves to "the first other site in YAML order", not "every other site". aci-sim new --sites N (N>2) builds without node-ID collisions, but ISN inter-site eBGP-EVPN peering and stretched- tenant HOME/REMOTE endpoint placement only reach one other site, so ISN is not a true full mesh across 3+ sites even with isn.peer_mesh: full. See §6a and docs/DESIGN.md's PR-18 section for the verified detail.
• Certificate signatures are not verified — cisco.aci certificate auth is accepted based on claimed identity alone ("accept-mode"), not a real RSA-SHA256 signature check. SIM_CERT_STRICT is a documented, currently-inert placeholder for a future verifying mode. Do not point this at anything internet-reachable or multi-tenant.
• NDO surface is partial — the sim implements the NDO/MSO endpoints a REST client typically needs (auth, sites, tenants, schemas/templates, fabric-connectivity, policy-states, template summaries, audit records, schema/deploy writes), not the entire NDO API. See docs/CONTRACT.md §7 for the exact endpoint list. POST /mso/api/v1/task (deploy) is no longer a no-op on the APIC side — see §10 "NDO → APIC deploy mirror"; what remains partial is breadth of endpoint coverage, not the deploy-materialization gap this used to describe.
• Single-user auth model — one username/password pair (SIM_USERNAME/SIM_PASSWORD) per process; there is no per-user RBAC, multiple local users, or AAA/TACACS+ integration.
• Websocket subscriptions are class/DN-scoped, not filter-scoped — ?subscription=yes + /socket<token> push-on-change is implemented (§10a), matching real APIC's class- and DN/subtree-scoped subscriptions. Not implemented: subscribing to a filtered query (e.g. only faultInst rows matching a query-target-filter) and getting pushes scoped to just that filter — a filtered subscription still fires for every change to the class/DN, same as an unfiltered one.
• /_sim/* is a sim-only control plane — reset, snapshot/restore, reload, add-leaf/remove-leaf do not exist on a real APIC. It is unauthenticated by design (test-orchestration convenience) and is exactly why SIM_BIND defaults to loopback-only.
• Static, not computed, control plane — BGP/EVPN, COOP, IS-IS/OSPF adjacencies, and forwarding state are represented as fixed, internally- consistent MOs (peers always show established/formed), not the output of a running protocol stack. There is no convergence, flapping, or liveness engine.
• Writes are a MIT upsert, not policy resolution — a POST stores the object (plus a small set of modeled reactions: fabricNodeIdentP → fabricNode + supporting MOs, and — since the NDO → APIC deploy mirror, §10 — an NDO template deploy materializing its objects into the target sites' APIC stores); it does not cascade arbitrary dependent policy or run the full validation a real APIC's policy engine would.
• Faults are seeded, not generated — faults.seed in topology.yaml is the only source; the sim never raises new faults on its own.
• Self-signed TLS only, intended for local/lab use — not hardened for production or internet exposure.
• NX-OS SSH / N5K/N7K migration surface is out of scope — the sim covers the ACI/NDO REST API only.
• Object coverage tracks real consumer needs, not the full ACI object model — see docs/CONTRACT.md §6 for the exact 99-class catalog. Classes no known consumer queries may be absent; add a builder + topology knob if you need more.

This is a test fixture, not a Cisco product, and is not affiliated with or endorsed by Cisco.

---

9. Editing the topology

topology.yaml is the single source of truth for the whole simulated fabric. Edit it and restart (or call POST /_sim/reload) to change it. Key knobs: sites (nodes, ASN, pod, mgmt IP), border-leaf vPC pairs + CSW peering, tenants (VRFs/BDs/APs/EPGs/contracts/L3Outs), ISN, seeded faults, endpoint generation count, and access-policy defaults (VLAN pools, physical/ L3 domains, AAEPs). The loader validates the whole file at once (Pydantic v2) and reports every cross-reference error together, so a typo'd BD/VRF name fails fast rather than surfacing as a confusing runtime 404 later.

10. The /_sim control API

Mounted on each APIC app at /_sim for test orchestration (does not exist on a real APIC):

Method + path	Effect
POST /_sim/reset	Restore the store to its build-time baseline.
POST /_sim/snapshot/{name}	Deep-copy the current store under {name}.
POST /_sim/restore/{name}	Restore a previously taken snapshot.
POST /_sim/reload	Re-read topology.yaml and rebuild the site from scratch.
POST /_sim/add-leaf	Add a fabricNode ({"id": 105} or auto-numbered).
POST /_sim/remove-leaf	Mark a fabricNode deleted ({"id": 105}).
POST /_sim/save/{name}	Persist this plane's store to disk under {name} (SIM_STATE_DIR).
POST /_sim/load/{name}	Restore this plane's store from a prior save/{name}.

Typical pattern: snapshot a clean state → mutate via writes → assert → restore (or reset) between test cases.

snapshot/restore vs. save/load: snapshot/restore are in-memory only — a deep-copy kept in the running process, gone the moment the sim restarts; they're the fast within-run rollback used between test cases. save/load are on-disk — they serialize the store to a JSON file under SIM_STATE_DIR (default ~/.aci-sim/state) and survive a full sim restart. Both save and load exist on every plane — each APIC site's app and the NDO app all mount their own /_sim/save/{name} and /_sim/load/{name}. scripts/sim-state.sh {save|restore} <name> is the whole-fabric wrapper: it hits every plane's endpoint in one command (both APIC sites' stores + the NDO state), so a full fabric state can be snapshotted to disk and restored later in one call instead of one curl per plane.

NDO → APIC deploy mirror: POST /mso/api/v1/task (an NDO template deploy, the request cisco.mso.ndo_schema_template_deploy sends) now materializes the deployed multi-site template's VRFs/BDs/ANPs/EPGs and domain/static-port binds into the target sites' APIC stores — previously a pure acknowledgment no-op with no APIC-side effect. A multi-site tenant created purely through NDO is now readable back from each target site's APIC (including a per-site fvTenant shadow, so the tenant itself — not just its child objects — shows up), matching how a real NDO-driven deploy pushes policy down to the fabrics it targets. See aci_sim/ndo/deploy_mirror.py for the mirroring logic.

10a. Query subscriptions + websocket push-on-change

The sim implements real APIC's subscription mechanism — the piece the "Monitoring/observability integration" use case (§1) needed to move from polling-only to event-driven.

1. Subscribe — add ?subscription=yes to any of the three query shapes: GET /api/class/{cls}.json, GET /api/mo/{dn}.json (incl. the /api/node/mo/{dn} alias), and GET /api/node/class/{...}. The response is the normal query result, unchanged, plus a top-level subscriptionId:

{"imdata":[...], "totalCount":"3", "subscriptionId":"1"}

Without ?subscription=yes, the response has no subscriptionId key at all — byte-identical to every query before this feature existed. This is a strict backward-compat guarantee, not just a default: nothing about a plain query's shape or behavior changed.

A class-query subscription (/api/class/{cls}.json) watches every MO of that class fabric-wide. A DN-scoped subscription (/api/mo/{dn}.json, node-scoped /api/node/class/{dn}/{cls}.json) watches that DN and its entire subtree — a write to a child DN still notifies a parent-DN subscriber, matching real APIC's subtree-subscription behavior.

2. Open the websocket — GET /socket<token>, where <token> is the same APIC-cookie token minted by aaaLogin (no separator between /socket and the token — this matches real APIC's literal path shape). An unknown/expired token is rejected before accept. One live connection per token; all of that session's subscriptions push over this one socket.

3. Push on change — after a write (POST /api/mo/{dn}.json create/ update, or DELETE /api/mo/{dn}.json) commits, every subscription whose scope matches the changed MO(s) gets an event on its owning token's socket:

{"subscriptionId":["1"], "imdata":[{"fvTenant":{"attributes":{"dn":"uni/tn-Corp","status":"created"}}}]}

status is created (new DN), modified (existing DN updated), or deleted (DELETE, or a POST body with status="deleted") — matching real APIC's subscription payload shape. A DELETE on a DN with children emits one event per removed MO in the subtree, so both class-scoped and DN-scoped subscribers see everything that was actually removed.

4. Refresh — GET /api/subscriptionRefresh.json?id=<id> keeps a subscription alive past its TTL (90s default, matching real APIC); always 200, even for an unknown/expired id (real APIC does not error a stale refresh — the caller just re-subscribes on its next query).

Lifecycle: disconnecting the websocket drops that connection's subscriptions immediately — a later change that would have matched is silently skipped (not an error), same as a client that never subscribed.

See docs/CONTRACT.md's subscription section for the exact response shapes and aci_sim/rest_aci/subscriptions.py for the registry + the sync- write-to-async-websocket bridge design (write handlers stay synchronous; each websocket connection owns an asyncio.Queue that the write path enqueues onto via put_nowait, decoupling "a write happened" from "bytes went out on a socket").

11. Running the test suite

.venv/bin/python -m pytest tests/ -q

tests/verify_autoaci.py is a verification harness replaying real ACI/NDO query patterns end-to-end against a running sim instance (scripts/verify.sh); the rest of tests/ are unit/integration tests run via plain pytest.

---

License

PolyForm Noncommercial 1.0.0 — free for personal, lab, research, and any other noncommercial use. Commercial use needs my permission first. See LICENSE.

Built nights and weekends. If aci-sim saves you a lab, you can buy me a coffee. ☕
